SGCI Inserts and Castings
Precision Engineering for Railway Infrastructure
SGCI Inserts, Base Plates
and Other Engineering Castings
Precision Castings
for Modern Mobility

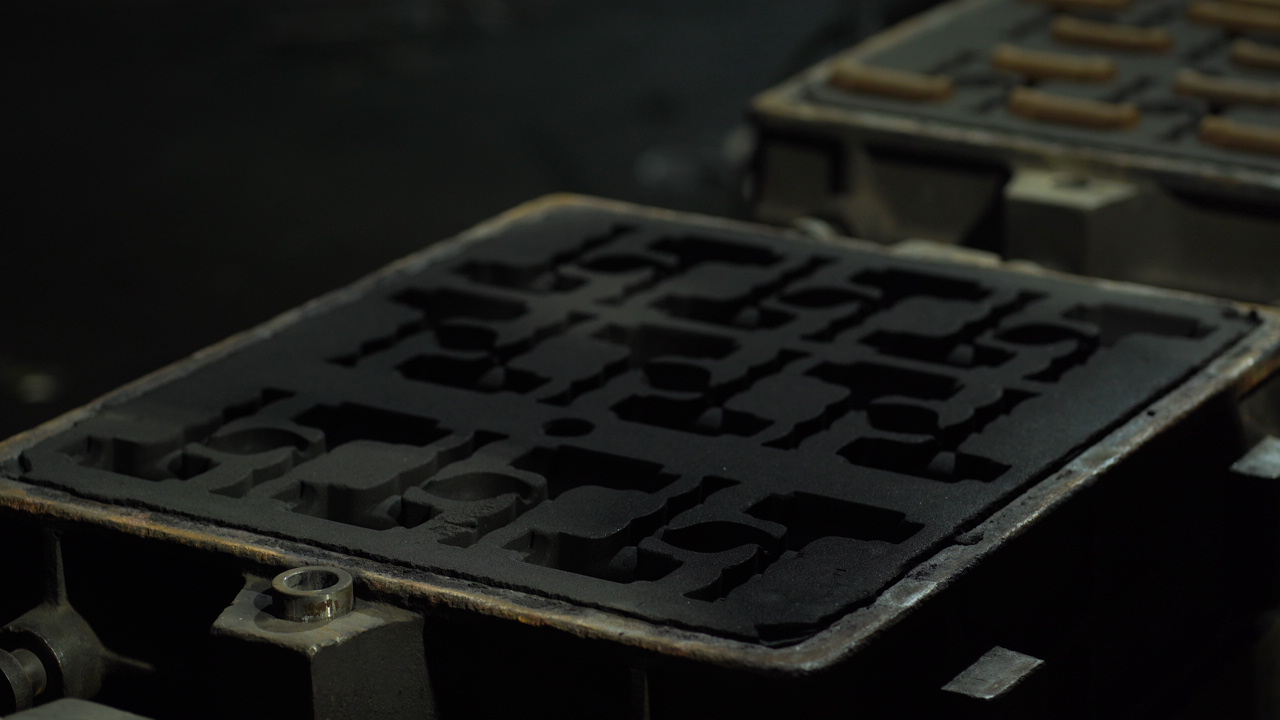

Patil Group manufactures ductile-iron and cast-iron castings on advanced DISA ARPA 450 and ARPA 300 lines. With facilities in Bokaro (23,000 MT) and Hyderabad (13,000 MT), we deliver castings from 1 kg to 40 kg with assured consistency.
Both plants hold RDSO and Delhi Metro approvals and are equipped with special-purpose machines and IoT systems, fully aligned with Industry 4.0 standards.
SGCI Inserts
Patil Group produces SGCI inserts for all sleeper types, with our Bokaro plant housing the country's largest facility, with a capacity of 1.3 million inserts per month.

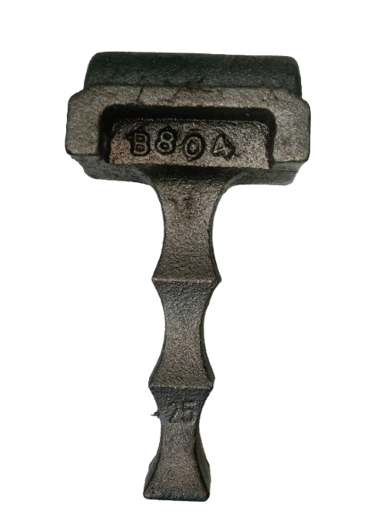

SGCI INSERT
RT 6901
1.484 kg

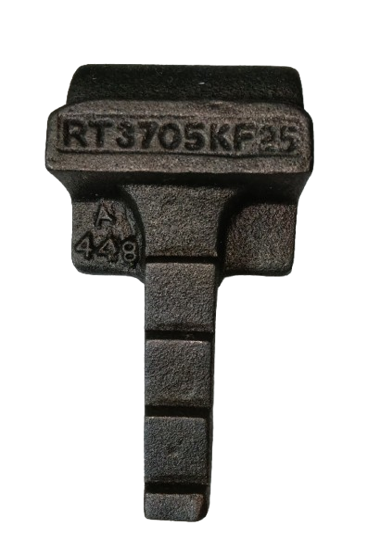

SGCI INSERT
RT 3705
1.97 kg
SGCI INSERT
RT 6901
1.484 kg
SGCI INSERT
RT 3705
1.97 kg
SGCI Inserts
Patil Group produces SGCI inserts for all sleeper types, with our Bokaro plant housing the country's largest facility, with a capacity of 1.3 million inserts per month.
Base Plates
We manufacture two-hole and four-hole base plates for metro projects, supplying directly to MMRDA and DMRC to support reliable urban transit.

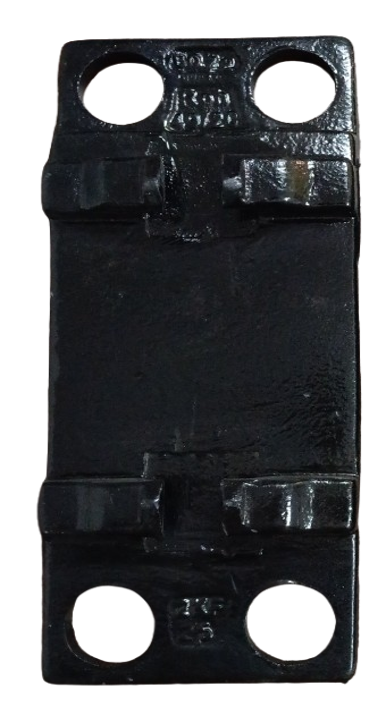

MMRDA project
Coated four-hole base plate
9.30 kg
Base Plates
We manufacture two-hole and four-hole base plates for metro projects, supplying directly to MMRDA and DMRC to support reliable urban transit.
MMRDA project
Coated four-hole base plate
9.30 kg
Railway Braking System
Our foundries deliver critical castings for railway braking assemblies, including lining holders, double eyes, hinges, levers, connectors, covers, and cylinders—ensuring safety and durability in service.

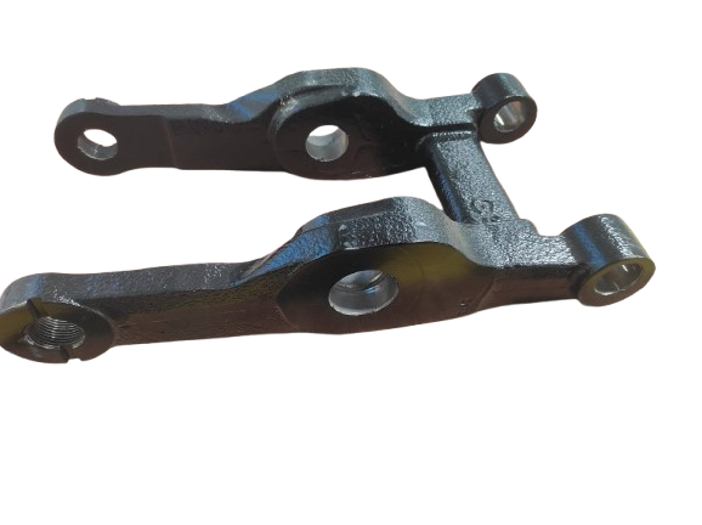

DAKO-CZ India Pvt Ltd, Hyderabad
Hinge
BK 5551
13.0 kg

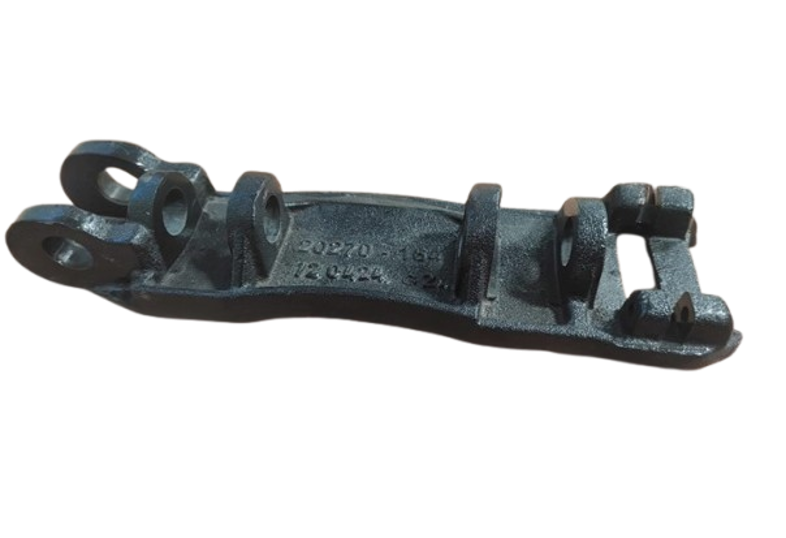

DAKO-CZ India Pvt Ltd, Hyderabad
Lining holder (LH and RH)
20270-163 & 20270-164
8.10 kg
DAKO-CZ India Pvt Ltd, Hyderabad
Hinge
BK 5551
13.0 kg
DAKO-CZ India Pvt Ltd, Hyderabad
Lining holder (LH and RH)
20270-163 & 20270-164
8.10 kg
Railway Braking System
Our foundries deliver critical castings for railway braking assemblies, including lining holders, double eyes, hinges, levers, connectors, covers, and cylinders—ensuring safety and durability in service.
Railway Suspension System
We supply precision castings for suspension assemblies, covering eight labyrinth ring types and suspension tubes, engineered for stability and long service life.
Indore Nitriders; Indore Lining
Labyrinth ring (eight different parts)
1209-01-211-927
10.00 to 30.00 kg
Railway Suspension System
We supply precision castings for suspension assemblies, covering eight labyrinth ring types and suspension tubes, engineered for stability and long service life.
Indore Nitriders; Indore Lining
Labyrinth ring (eight different parts)
1209-01-211-927
10.00 to 30.00 kg
